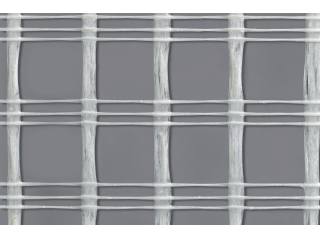

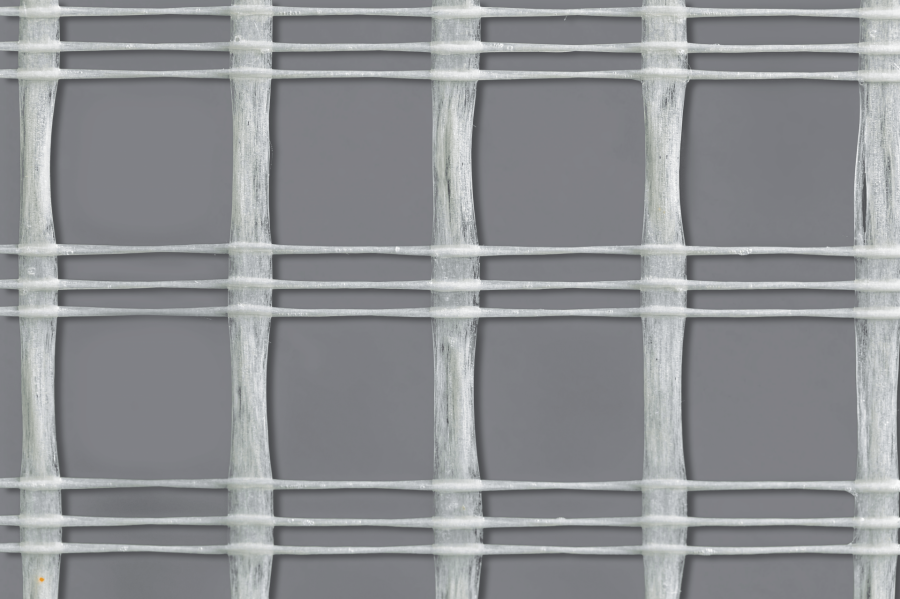

Composite MeshBASIC.

A mesh used for building facades, including high-rise buildings, where increased mechanical strength of the reinforcing layer is required.
The mesh is impregnated with the innovative Lateks RCL coating, which provides improved tensile strength and fabric stability.

When combined with insulation systems from renowned manufacturers, it ensures an attractive and reliable facade.

APPLICATION
Basic mesh is intended for use as a reinforcing material in external wall thermal insulation composite systems (ETICS).

STORAGE
Packed rolls should be stored indoors in dry, well-ventilated rooms, in a vertical position, away from heating devices. Storage temperature should be between 0 °C and +35 °C. Prolonged exposure to weather conditions, especially moisture, may result in the loss of original performance properties.

PACKAGING

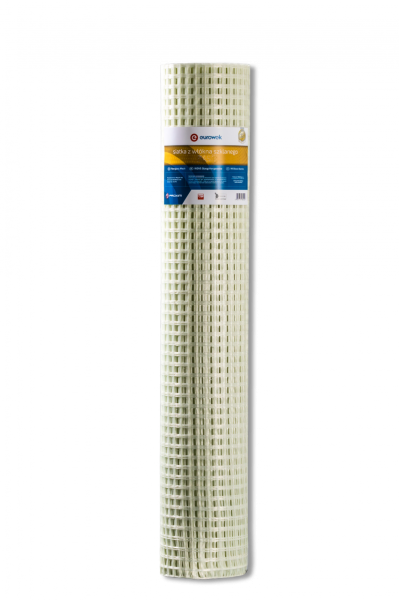

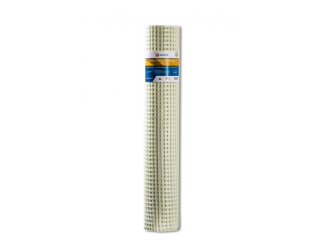

Each roll is packed in shrink film and then vertically placed in a cardboard box on a wooden pallet.

  • Surface weight: 140 g/m² ± 5%
  • Mesh size: 4.5 mm ± 1.0
  • Roll width: 1000 mm ± 1%

Tensile strength and elongation

  • Tensile strength as delivered:
    • Warp direction: ≥ 30 N/mm
    • Weft direction: ≥ 32 N/mm
  • Elongation as delivered:
    • Warp direction: ≤ 4.5%
    • Weft direction: ≤ 4.5%
  • Tensile strength after alkaline conditioning:
    • Warp direction: ≥ 26 N/mm
    • Weft direction: ≥ 28 N/mm



Options available
  • Color adjustment: yes
  • Standard number of rolls per pallet: 30
  • Logo print: no
  • Fabric softness: hard
  • Width: 1m
  • Length: 50m
